WA Clean Technology
Measuring surface cleanliness has never been easier !
The patented technology WA Clean™ is easy to use and the ideal way to evaluate and check the cleanliness of a blasted surface in accordance with ISO/TR 22770 international standards, independent of any human interpretation. It reads, quantifies, and archives the degree of surface cleanliness based on mathematical values and colorimetry process.
AVAILABLE IN TWO VERSIONS:
AVAILABLE IN TWO VERSIONS:
Users benefits
Users benefits
- Easy-to-use solution for fast and accurate quality controls
- Usable regardless surrounding light conditions
- Objective and reliable surface cleanliness measurements
- Re-blasting and over blasting reduction
- Reduced litigations with inspectors and/or end users
- User-friendly interface
- Internal memory to save, export and share quality records
- Automatic PDF reports generation

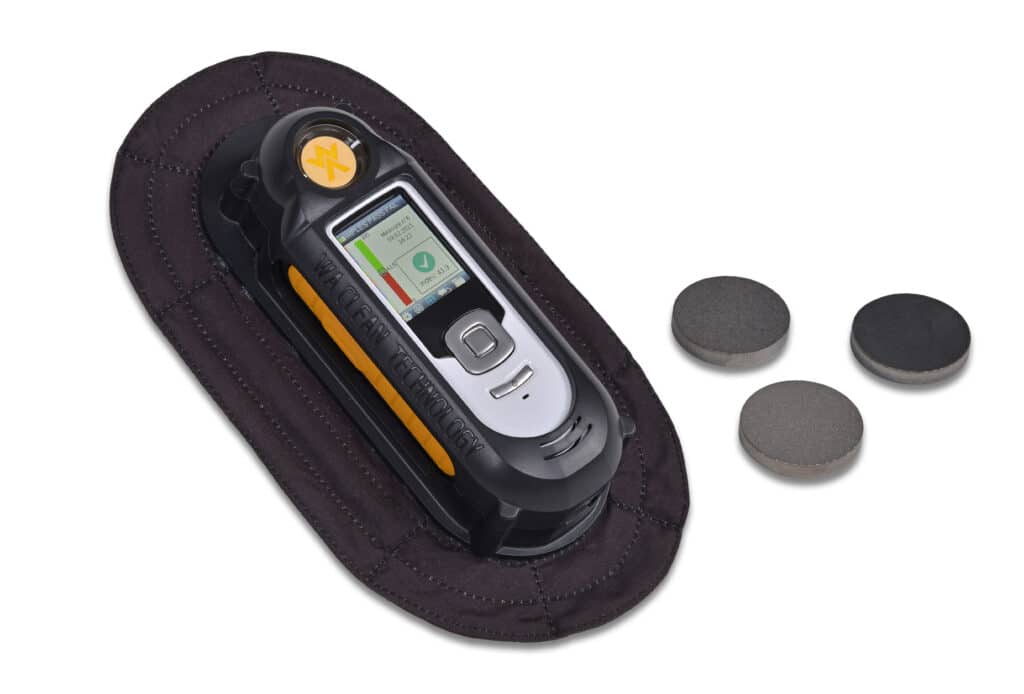

- Optical analysis device able to evaluate the cleanliness level of a blasted surface
- Quick measurements: less than 2 seconds per analysis
- 2 working modes: cleanliness measurement or PASS/FAIL
- Pre-visualization of the measured area via a built-in digital camera
- Specific adaptors to fit with curved surfaces (pipes, windmill towers…)
Specifications
Specifications
SPECIFICATIONS | HEAVY DUTY | iOS |
Measuring surface area | 50 or 200mm² | 25 mm² |
Humidity environment | 20-80% RH | 0-80% RH |
Operating temperature range | 0°C to 60°C | 0°C to 60°C |
Light source | 3 colours LED source | White LED source |
Measurment geometry | 45°/0° | 45°/0° |
Power supply | 1030 mAh – Lithium battery ion | 400 mAh – Lithium battery ion |
Autonomy | 10 hours average time | 4 to 6 hours |
Dimensions | 140x50x36 mm (LxWxH) | 51 x 51 mm (Ø x h) |
Weight | 160 grams | 60 grams |
Smartphone compatibility | N/A | Device runs with iPhone 6 and >6 |
Data interface usb | USB Mass Storage | USB Mass Storage iPhone transfer data options |
Accreditations
Accreditations
Patented technology – WO 2015/044591 A1, using the CIELAB color components as are defined in IS0 11664-3
Certified ISO/TR 22770
Awarded Product of the Year by PaintSquare
Resources & Downloads
Video
Video
Learn more about our technologies:
AWARDS
AWARDS
WA Clean Technology designated Product of the Year in the Surface Preparation Category by PaintSquare!
Developed by our in-house engineers, WA Clean technology has evolved, grown and been in the spotlight!
PaintSquare Prestige Award honors every year recent innovations actively used in the protective coatings industry. In 2019 PaintSquare readers voted and conferred the Prestige Award Surface Preparation Category to the WA Clean Technology, considering its ability to provide objective, reliable and repeatable evaluations of surface blast – cleaning grades, independently of any human interpretation.
